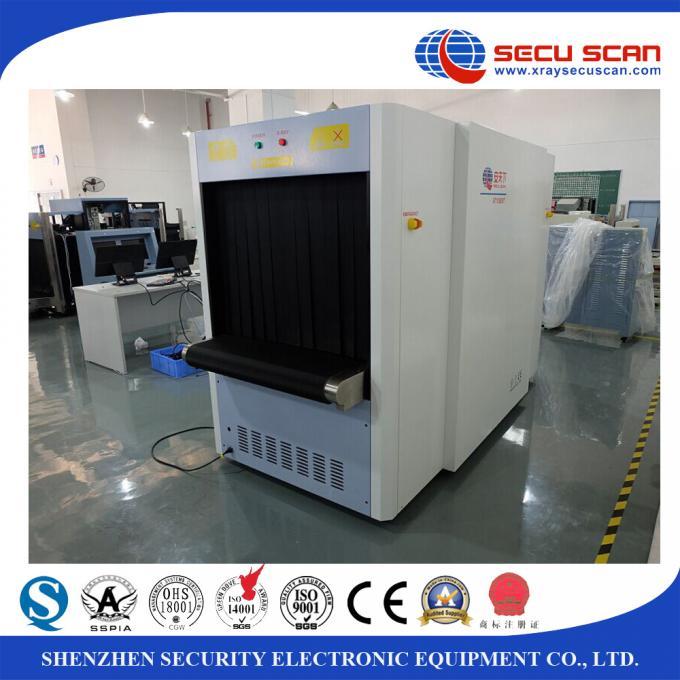

Multi View Big Size Airport Security X Ray Scanner 0.5m / S Speed

chất lượng tốt Baggage And Parcel Inspection giảm giá
chất lượng tốt Baggage And Parcel Inspection giảm giá
Tôi trò chuyện trực tuyến bây giờ

Multi View Big Size Airport Security X Ray Scanner 0.5m / S Speed

Trung Quốc Multi View Big Size Airport Security X Ray Scanner 0.5m / S Speed nhà cung cấp
Multi View Big Size Airport Security X Ray Scanner 0.5m / S Speed nhà cung cấp Multi View Big Size Airport Security X Ray Scanner 0.5m / S Speed nhà cung cấp Multi View Big Size Airport Security X Ray Scanner 0.5m / S Speed nhà cung cấp

Hình ảnh lớn :  Multi View Big Size Airport Security X Ray Scanner 0.5m / S Speed

Thông tin chi tiết sản phẩm:

Place of Origin: China
Hàng hiệu: SECU SCAN
Chứng nhận: ISO
Model Number: AT-10080T

Thanh toán:

Minimum Order Quantity: 1
Giá bán: Negotiable
Packaging Details: wooden package
Delivery Time: one week when in stock, one month no stock
Contact Now
Chi tiết sản phẩm
Warranty: one year and life time technical support Conveyor speed: 0.5m/s
X-ray generator: three from different angles Penetration: 34mm
Tunnel size: 1000*800mm Monitor: three
Installation: with instruction manual, very simple Delivery: one month
Trainning: free of cost at the factory



Multi View Big Size Airport Security X Ray Scanner 0.5m / S Speed



Model: AT-10080T



Advantages:



1. Multi-view x-ray baggage scanner, three generators in different angles, less dead angle.

2. High conveyor speed, two or three tims faster than single-view scanner

3. Perfect scanning effect, suitable for higher standard of logistics,customs,airport



X-ray Generator:

  •  Generate quantity: 3 pieces of generator in difference direction.
  •  Beam direction : vertical, horizontal, oblique
  •  Anode Voltage: 100~160Kv
  •  Anode power: 0.4 to 1.2mA
  •  Cooling / Duty Cycle: Oil Cooling /100

Operating Environment:

  •  Operation temperature/Humidity: 0℃ to 40℃/10%-90%(non-condensing)
  •  Storage Temperature/Humidity: -20℃ to 60℃/10%-90%(non-condensing)
  •  Operation Power: 220VAC(±10%)50±3Hz
  •  Power Consumption: <3KVA
  •  Noise: <58db
  •  Input / output extension Roller



General Specification :

  •  Tunnel Size: 1070(W)*810(H)mm
  •  Conveyor Speed: 0.50m/s
  •  Conveyor height : 800mm
  •  Conveyor Max Load: 200kg (75kg/m²)
  •  Dose per Inspection<14µSv per inspection
  •  Resolution: 38AWG
  •  Spatial resolution: Level: dia1.3mm, Vertical: dia1.0mm
  •  Penetrate resolution: 24WG to 34AWG
  •  Penetration: 38mm Steel
  •  Film Safety: Guarantee ISO1600 Film(33 DIN)
  •  X-ray Leakage < µSv /h at the distance of 5 cm 2” from external housing
  •  Operation Cycle: 100%,[start –up time about 1-2 for boot procedure and self-tests]
  •  Throughput : Typically 2000 to 2300items/h
  •  Data recording mediums : No damage to computer memories, such as cassettes, floppy disks or hard disks due to x-rays.
  •  X-ray Sensor: L-Shaped  Photodiode Array (multi-energetic), 12bit Deep
  •  Monitor: High Resolution Color, LCD Accord, 17inch



Software System:

  •  Image Processing: Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval.
  •  Threat Image Projection software
  •  Screeners assist Threat Detection System.
  •  Remote workstations
  •  Supervisor workstation
  •  Automated explosive threat detection system
  • I mage Grey Level: 4096
  • I  mage Max Resolution: 1024 * 1280 pixel
  •  Image Processing: 24bit for processing real time
  •  Image storage: Storage 60000 pictures in real time
  •  Zoom: 64 Times Enlarge, Whole screen continuous observation
  •  Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green
  •  Automatic explosive detection system, by means of high performance parallel computing

Multi View Big Size Airport Security X Ray Scanner 0.5m / S Speed
